Cooperated with the advanced 445nm blue laser diode tech and a qualified optic lens inside an high duration and compact structure tube, it is designed and manufactured into a professional line measuring tool of a TTL modulation 445nm blue line laser module. Usually it gets constant power source supply and specially designed thermal emitting system inside its durable metal housing tube, which not only assures long operating time lasted blue light emission, but also achieves ultra high level of laser beam stability in continuous use. When TTL modulation laser line generator gets proper installation or integration with experimental machine or device, it brings users good direction, easy reaching and noncontact line generation onto multiple working surfaces easily and conveniently.
Basically TTL modulation 445nm blue line laser module features TTL high speed modulation, which enables precise control of laser output timing and synchronization with data acquisition instruments, facilitating the collection of dynamic experimental data. It is required to make long operating time lasted line projection, thus it not only adopts an import 445nm blue laser diode within 50mW to 100mW output power, but also adopts a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube. When TTL modulation laser line generator adopts different dimension tube with 16mm, 18.9mm and 26mm diameter, only if there is sufficient space leaving for tube heat dissipation, it also bears wide range operating temperature fluctuation, resistant to mechanical shaking or calibration as well.
Usually TTL modulation blue line laser module output a highly fine and straight blue reference line from a qualified glass coated lens or Powell lens within 10 to 110 degrees. It keeps work with intense Gaussian beam or Non Gaussian distribution blue light source at long extending distance. On condition that uniform beam is emitting from the beam aperture, a Powell lens made TTL modulation laser line generator is able to project a high uniformity and high brightness blue line at prolonged operating distance, especially workable for high level of accuracy line positioning works. It serves as a controllable structured light or line light source in various optical research experiments, projecting a uniform line for applications such as light scattering analysis, structured light reconstruction, and material optical property testing.
Whatever output power it is selecting, TTL modulation 445nm blue line laser module is providing intuitive visible light imaging, ideal for visualizing optical paths and capturing image signals. It enables excellent experimental repeatability and minimize system errors caused by the light source. Being made with ultra compact size tube design, this blue alignment laser enables easy integration into optical setups and compatibility with diverse research optical configurations. It makes no mistake and no contact line generation for multiple experimental fields, including research on structured light 3D construction, study of material surface scattering, optical path experiments in media, optical path setup and reference calibration on laboratory optical benches.
Month: October 2026

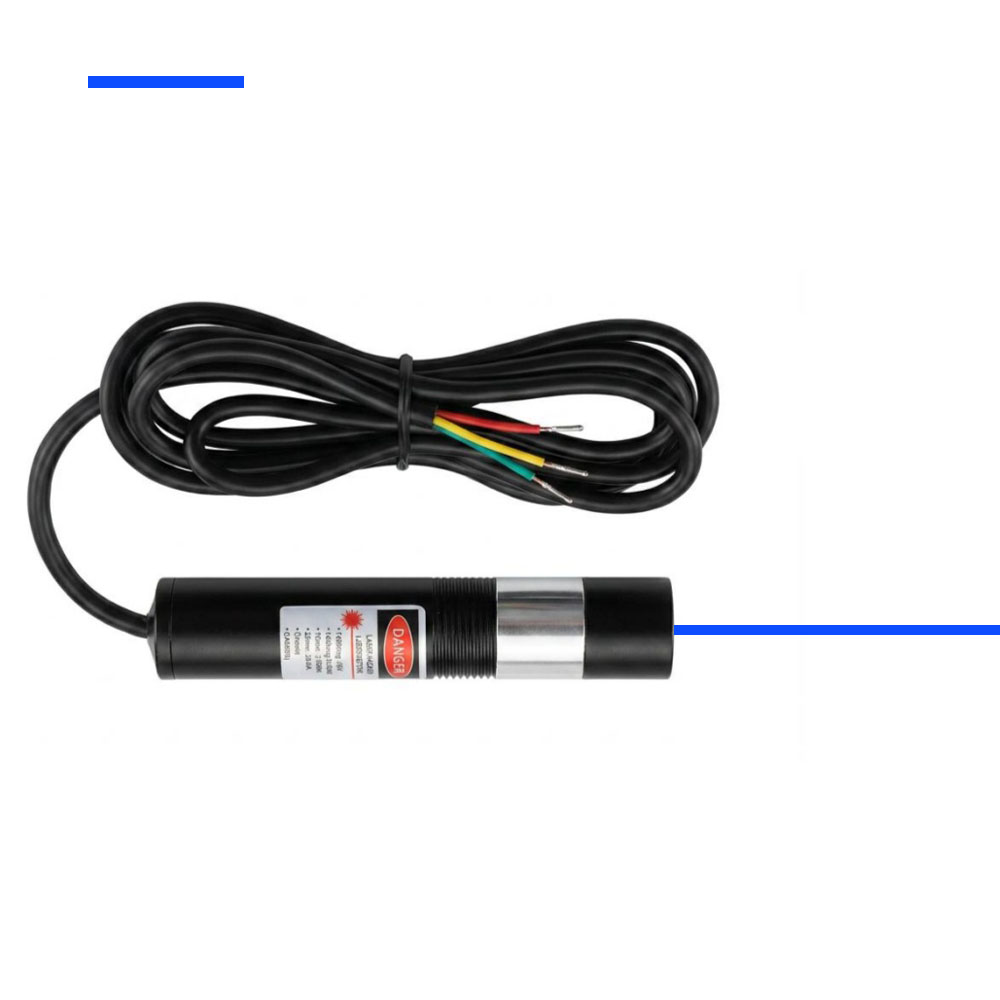

TTL Modulation 445nm Blue Line Laser Alignment Applied for Stone Processing Positioning
Either line projecting work is processing at a close or long distance, not easily relying on any prior line drawing or printing work, it makes a good job to apply a TTL modulation 445nm blue line laser alignment for stone processing positioning works. It is equipped with a TTL pulse modulation power source, which serves as a specialized alignment light source for stone processing. When it makes good use of basic thermal emitting system inside a high duration metal housing tube, being made with a ultra compact size design, TTL modulation 445nm blue laser module allows for long operating time lasted blue light and blue line projection, replacing traditional manual chalk-line methods to achieve precise, automated positioning.
Employed by an import 445nm blue laser diode within 50mW to 100mW, cooperated with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube with 16mm, 18.9mm and 26mm diameter, it is working well with superior nice heat dissipation and achieving increasing stability blue light and blue reference line projection as long as 24 hours per day. The 445nm blue light offers superior penetration. Compared to red lasers, TTL modulation blue line laser module provides exceptional visibility on dark, matte, or heavily textured stone surfaces; the beam remains distinct against the stone’s natural patterns and is clearly visible even in dimly lit workshops.
When TTL modulation 445nm blue line laser alignment applies a qualified glass coated lens or Powell lens within 10 to 110 degree fan angles, it projects clear, straight blue reference lines within 0.5 meter to 6 meters lengths onto surfaces such as marble, granite, and engineered quartz. It is suitable for pre-alignment in processes like cutting, chamfering, drilling, and edge trimming. Together with adjustable focus optic lens, after its immediate blue light projection at a greater distance, TTL modulation blue line laser also allows for freely adjusted laser line width, and assures ultra precise and bright blue reference line indication within the maximum distance of 25 meters. It accommodates both close-range precision marking and long-range, wide-area alignment, balancing accuracy with operational reach to suit stone processing of all sizes.
The TTL modulation 445nm blue line laser alignment projects a uniform line without scattering, the edges are sharp and well defined, free from blurring or breaks. This effectively eliminates errors associated with manual chalk-line marking and significantly boosts the pass rate for finished stone products after cutting and polishing. Featured by compact size and high stability blue line projection, blue alignment laser offers resistance to vibration and workshop dust. It integrates easily with various types of stone processing machinery and is suitable for continuous, long-term industrial operation. It enables no mistake and low cost line generation for multiple fields, including alignment and marking for cutting large marble and granite slabs, precision positioning for stone drilling and grinding, shaped stone cutting, stone processing line, and stone slab installation and cutting alignment etc.

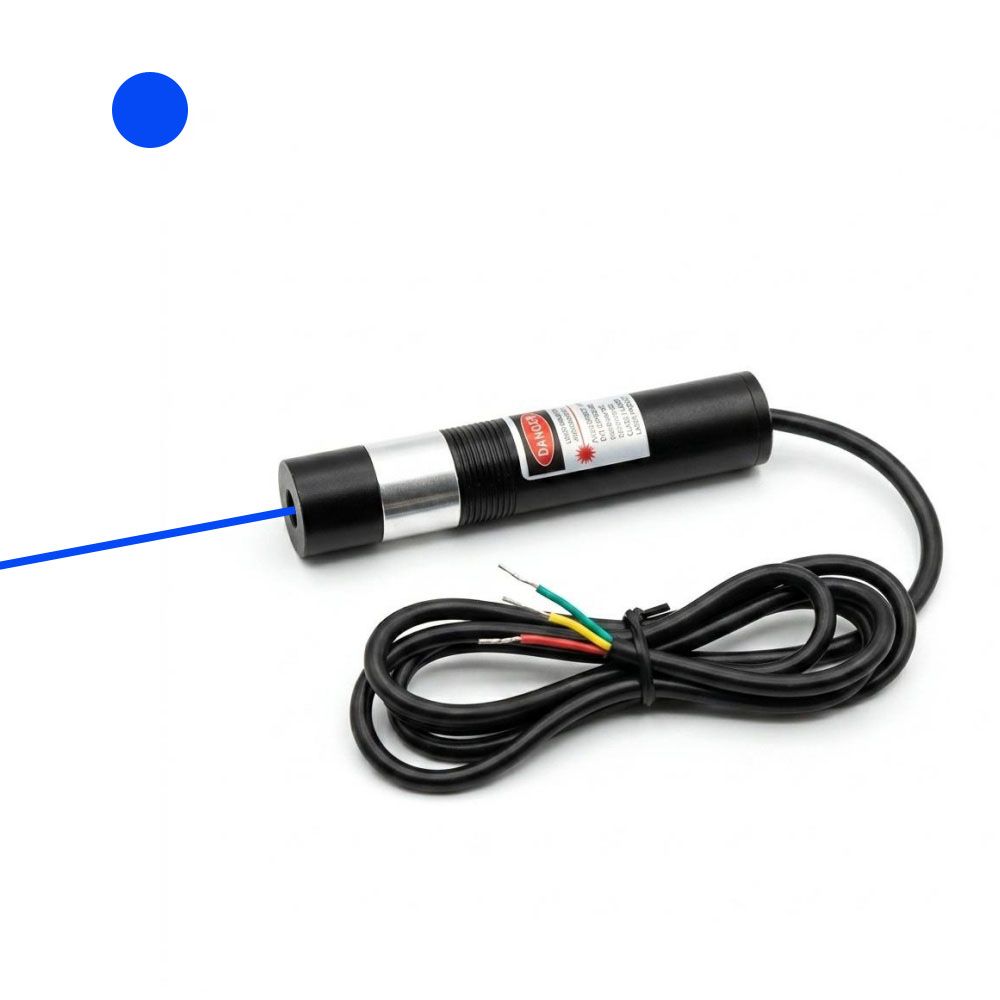

TTL Modulation 445nm Blue Laser Diode Module for Scientific Experiments
Whatever kind of working surface users are trying to make ultra clear, precise and bright dot indication, either pointing at close or long distance, it would be a quite nice solution for engineers and professionals to apply a high energy density light emitted tool of a TTL modulation 445nm blue laser diode module. It applies an import 445nm blue laser diode and a qualified optic lens inside a highly durable metal housing tube. When it gets the special use of TTL high speed modulation power source supply, equipped with on/off laser signals, TTL modulation 445nm blue laser alignment allows for long operating time lasted blue light and blue dot projection for all scientific research fields continuously.
Basically TTL modulation 445nm blue laser diode module applies an import 445nm blue laser diode within 50mW to 100mW as its beam emitting source. Compared to a simple DC power laser device, it adopts TTL modulation, supports external signal control for laser start/stop, enabling time synchronization between the light source and detectors or cameras, which facilitates dynamic optical data acquisition. When it is in need to make long operating time lasted blue dot projection, TTL modulation 445nm blue dot laser alignment selects a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, available with 16mm, 18.9mm and 26mm diameter anodized aluminum alloy housing tube. It gets excellent heat dissipation, minimal thermal drift, vibration resistance under 24 hours continuous blue dot projection work.
When dot projecting is processing for both prolonged operation and long distance, TTL modulation 445nm blue laser diode module applies a qualified glass coated lens and adjustable focus optic lens. It enables high density blue laser light source concentration, and immediate conversion into an increasing accuracy and brightness blue reference dot projection within a long extending distance of 25 meters and multiple ambient lighting occasions as well. The adjustable blue laser dot alignment has just made TTL modulation blue dot laser suitable for various experimental distances without requiring a module change. The blue laser dot is directly visible to the naked eye, making the setup, debugging, and alignment of optical paths more intuitive.
Based on the adoption of a built-in APC, ACC driving circuit board, whatever output power it is selecting, TTL modulation laser diode module outputs stable blue light and blue reference dot. It features excellent beam circularity, making it ideal for fundamental optical experiments such as path calibration, alignment, and scattering studies. After quite easy integration and mounting onto optic tables, its simple setup requirements help reduce the cost of building the experimental system. This industrial grade stability made blue alignment laser is used for optical alignment experiments, beam profile analysis, medium scattering tests, fluorescence excitation of certain materials, optical path calibration, and system alignment; it can also be integrated with data acquisition equipment to perform time-synchronized optical measurements.
